• Four-Sided Planing: Precision machining of timber on all four sides in a single pass.
• Profile Moulding: Produces accurate profiles, mouldings and finished components with excellent surface quality.
• Solid Wood Processing: Suitable for applications including mouldings, joinery, windows, construction timber and general woodworking production.
• Flexible Production: Modular spindle configurations allow the machine to accommodate different products and production requirements.

• Comfort Set: Wrench-free adjustment of pressure and guide elements significantly reduces setup time.
• Memory Plus: Stores machine settings for repeat jobs, providing fast setup and excellent repeatability.
• 7,000 rpm Spindles: High standard spindle speed delivers excellent productivity while maintaining surface quality.
• Variable Feed Speed: Frequency-controlled feed from 5–40 m/min accommodates different materials and applications.
• Electronic Read-Outs: Precise digital positioning for spindle, chip breaker and pressure shoe adjustments.
• Modular Configuration: Flexible spindle and equipment options allow the machine to be tailored to individual production requirements.

• Working Width: 20–230 mm as standard
• Working Height: 10–160 mm as standard
• Feed Speed: 5–40 m/min, frequency controlled
• Spindle Speed: 7,000 rpm standard; 8,000 rpm optional
• Tool Diameter: Up to 200 mm on horizontal and vertical spindles
• Spindle Motor Power: 5.5–15 kW depending on configuration
• Operating System: Comfort Set with Memory Plus as standard
• Extended Capacity: Optional 260 mm working width and 200 mm working height

The robust and highly versatile multi-blade rip saw – The SOLID RIP U 310 is a robust, easy-to-use multi-blade rip saw for small operations, delivering high-quality results, up to 110 mm cutting height, fast feed speeds, and quick retooling with the patented QuickFix system.

• High-Precision Cutting: Delivers consistently accurate results with excellent cut quality.

• Cutting Capacity: Handles material up to 110 mm cutting height for versatile applications.

• High Feed Speeds: Ensures efficient processing and increased productivity.

• QuickFix System: Patented solution for fast, simple, and tool-free retooling.

• User-Friendly Operation: Intuitive controls make the machine easy to operate.

• Robust Construction: Durable design built for long-term, reliable performance.

• Prism Guide System: Double-sided guide ensures precise, stable material feed.

• Safety Features: SafetyPlus system with Kevlar protection enhances operator safety.

• Enclosed Transport Chain: Reduces jamming while improving operational safety.

• Flexible Options: Available with upgrades such as laser guides, pressure boards, and chain spikes.

Technical Specifications

• Max Cutting Width: 310 mm capacity for a wide range of ripping applications
• Max Cutting Height: Up to 110 mm with QuickFix clamping system
• Feed Speed: Up to 35 m/min for high productivity
• Min Workpiece Length: Processes material from 500 mm
• Saw Blade Diameter: 300–350 mm for flexible tooling
• Motor Power: Up to 22 kW (optional 30 / 37 kW)
• Chain Width: 340 mm for stable material feed
• Max Infeed Width: 650 mm for larger workpieces
• Machine Weight: Approx. 1,850 kg

Standard Equipment

• QuickFix System: Patented system for fast, efficient retooling
• Electrical Adjustments: Saw shaft and pressure unit height adjustment

Optional Equipment

• Laser Cutting Indicator: Improved cutting accuracy and alignment
• Infeed Fence: Enhanced material guidance
• Pressure Board: Improved hold-down for difficult materials
• Spikes: Increased grip for challenging timber

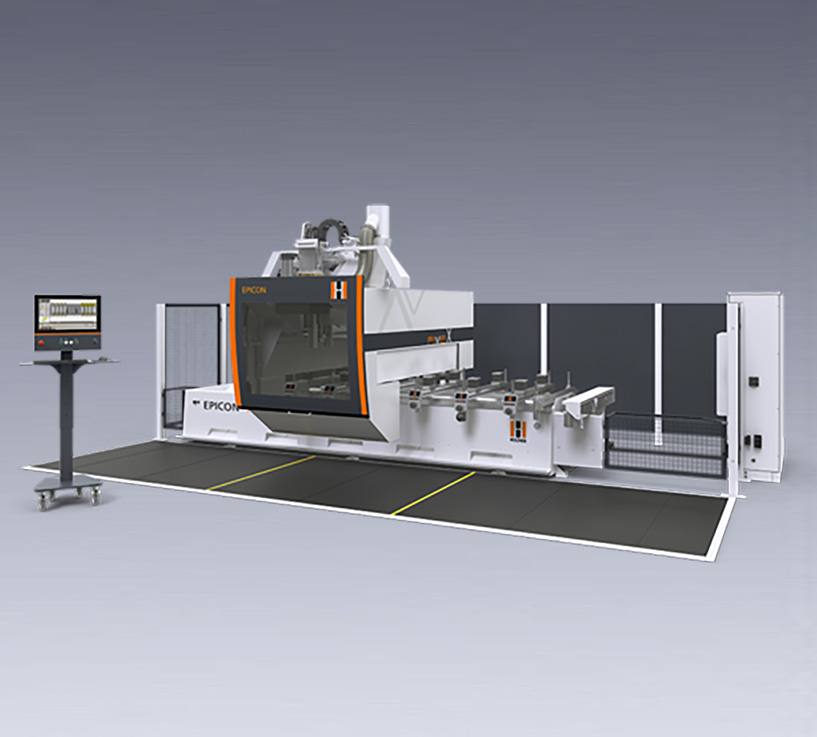

Precision 5 axis woodworking machining – The Epicon 7135 5 Axis CNC machine is designed for precise machining of complex parts with high accuracy. It supports multi-axis milling, turning, and drilling for advanced manufacturing in aerospace, automotive, and medical industries.

• 5 Axis Spindle: 13 kW interpolating spindle providing high precision for complex multi sided machining.
• Optional PRO TORQUE Spindle: Upgradable 18 kW spindle offering stronger performance for demanding materials.
• Integrated Drilling Head: Multiple spindle options enabling efficient drilling, grooving, and sawing operations.
• Flexible Table Concept: Adjustable console tables with pneumatic clamping for versatile workpiece support.
• Vacuum System: Independently switchable zones ensuring reliable clamping without vacuum loss.
• Large Machining Envelope: Generous X, Y, and Z travel accommodating oversized or intricate components.
• SafeDetect Sensor: Sensor based system enhancing operator safety without physical barriers.
• ChipControl Monitoring: Vibration and temperature feedback for proactive spindle condition monitoring.
• Automatic Hood Positioning: Programmable extraction hood settings improving chip removal efficiency.
• Mobile Control Panel: Large touch display on a movable stand for ergonomic machine operation.
• Energy Management: ECO mode reduces energy consumption during idle periods.
• 3D Simulation Support: Software enabled simulation and collision checking for safer programming.
• Laser Positioning System: Projects outlines and suction cup locations for fast and accurate setup.

Here are some basic specs for the Epicon 7135 5-Axis CNC:

• X-axis travel: 3,680 / 4,580 / 5,480 / 6,380 / 7,280 mm
• Y-axis travel: 1,500 mm
• Z-axis stroke: 565 mm
• Effective machining height (above table): 300 mm
• Standard spindle: 13 kW 5-axis, 1,000–24,000 rpm, ceramic bearings
• Optional spindle: 18 kW PRO-TORQUE 5-axis, 1,000–24,000 rpm
• Vector speed: 142 m/min
• Vacuum pump: 100 m³/h standard (options up to 250 m³/h)
• Guarantee on linear guides: 10 years

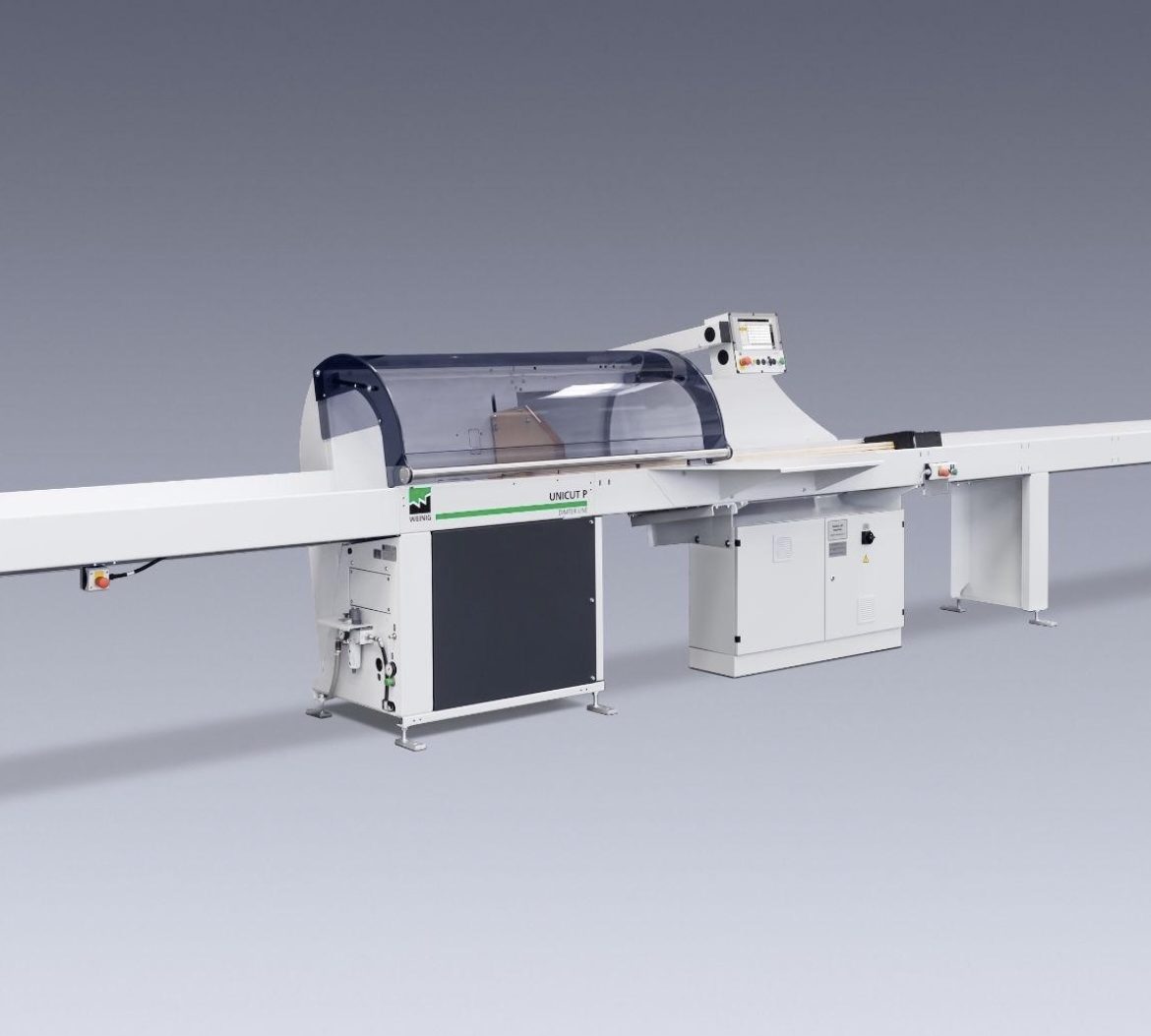

Cross-Cutting – Taking a sawn piece or multiple pieces of timber. Cutting to length either as fixed lengths or optimised from single or multiple cutting lists. Manual cutting can be easily done as required. Excels in the task of optimising the maximum yield possible for timber being used.

• Pusher system: The fixed pusher guides the timber into the saw. With extremely good accuracy. Very reliable pusher with low maintenance belt system.
• Touch screen: Simple touchscreen control for all adjustments.
• Laser sensor: Used for optimization of rough material measures incoming length.
• Health & Safety: Superb health and safety features with the saw covered by the overhead guarding.
• Direct connection to the office PC (optional): Efficient transfer of data from the office to the machine. Saving much time loading sizes into the touch screen.
• Dust extraction port: Lower dust extraction port for saw blades.
• Space saving design: Means it can sit fairly close to a wall.

• Fixed pusher / 300 x 100mm – 360mm x 25mm / Pneumatic top hold down / 6.1m Pusher / Optimising – Pack cutting – manual modes / Touch screen

Sanding individual Faces – Calibrating solid, doors or base board, finish sanding of solid timber frames and veneers, denibbing lacquer in one or multiple passes.

• Sanding size: Extremely large sanding size considering the overall machine dimension.
• Touch screen: Effortless touchscreen control for all adjustments.
• Enormatic: Fully automatic quick setting and feed release.
• Constant Pass Line: Top moving heads, the raising and lowering of the sanding units enable thicknessing of the product. With infeed and outfeed tables if required at a constant level.
• Health & Safety: Superb health and safety features.
• Single Button Startup: Single-button cascade start-up and highly efficient motors.
• Sanding weight: Heavy board can be sanded due to the fixed table.
• Heavy duty: Heavy-duty steel framed body

Adjustment: Electric compensation of the abrasive belt grain thickness.

2 or 3 units / 1350mm wide x 200mm max deep. / 3-15m per minute feed speed  / 1350x2000mm sanding belt dimension /  The superb Enormatic setting system / Touch screen technology assists the operator / 18.5kw single motor / electronic compensation for the belt grit..

Four-sided planing – Taking a sawn piece of timber and in one pass plane all 4 faces and straighten.

• Planing size: Extremely large planing size considering the overall machine dimension.
• Touch screen: Very simple touchscreen control for all adjustments.
• Laser preview: Lasers previewing the sawn material before planing.
• Health & Safety: Superb health and safety features with entrance gate and workpiece monitoring.
• Single Button Startup: Single-button start-up and highly efficient motors.
• Dust extraction port: One dust extraction port and specially designed cutter block hoods.
• Heavy duty: Heavy-duty durocem body
• Can be repositioned: The Cube 3 can be repositioned in the workshop using a pallet truck.
• Weinig Easylock knives: (add details here)

4 units / 260 x 160mm max / 15 x 8mm min  / 2m straightening table / Touch screen for auto setting / throwaway tip knives on standard Weinig tooling.
